d 260 mm Bore diameter
D 360 mm Outside diameter
T 63.5 mm Total width
B 60 mm Width of inner ring
C 52 mm Width of outer ring
Cup r (min.) 2.5 mm Chamfer dimension of outer ring (Cup)
Cone r (min.) 3 mm Chamfer dimension of inner ring (Cone)
Basic Load Ratings
Cr 630000 N Basic dynamic load rating
C0r 1260000 N Basic static load rating
Speeds
Grease 850 min-1 Grease lubrication
Oil (Oil-bath) 1100 min-1 Oil-bath lubrication
Dimensions
a 69.8 mm Effective load center
Abutment and Fillet Dimensions
da (min.) 278 mm Diameter of shaft abutment
Db (min.) 347 mm Diameter of housing abutment
Da (min.) 333 mm Diameter of housing abutment
Da (max.) 348 mm Diameter of housing abutment
Sa 11 mm Minimum width of space required in housing on large side face
Sb 15.5 mm Minimum width of space required in housing on small side face
db (max.) 278 mm Diameter of shaft abutment
ra (max.) 2.5 mm Radius of shaft or housing fillet of inner ring
ra (max.) 2 mm Radius of shaft or housing fillet of outer ring

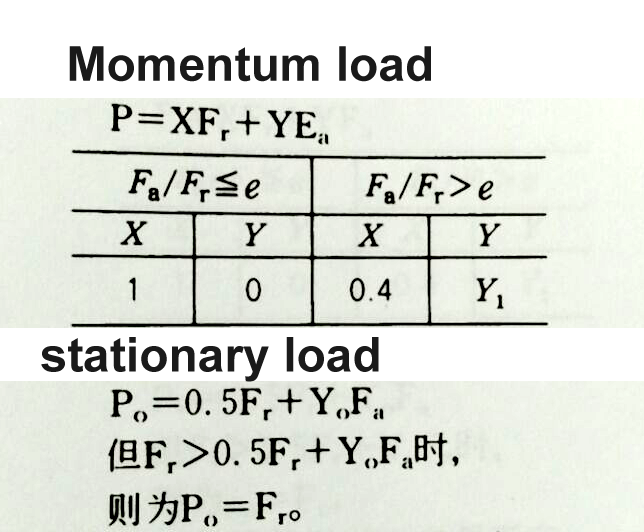

Calculation factors
e 0.35 Constant
Y0 0.94 Axial load Factors
Y1 1.7 Axial load Factors
Mass
(approx.) 18.1 kg
 32952  bearing
