 22209CD  22209CDK bearing   NSK

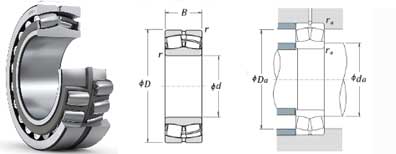

Boundary Dimensions
d 40 mm Bore diameter
D 85 mm Outside diameter
B 23 mm Width
r (min.) 1.1 mm Chamfer dimension
Basic Load Ratings
Cr 78000 N Basic dynamic load rating
C0r 88000 N Basic static load rating

Grease 4300 min-1 Grease lubrication
Oil (Oil-bath) 5300 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 52 mm Diameter of shaft abutment
da (max.) 54 mm Diameter of shaft abutment
Da (min.) 78 mm Diameter of housing abutment
Da (max.) 75 mm Diameter of housing abutment
ra (max.) 1  mm Radius of shaft or housing fillet
Calculation factors
e 0.28 Constant
Y2 3.6 Axial load Factors
Y3 2.4  Axial load Factors
Y0 2.4  Axial load Factors
Mass 0.57 kg

ZWZ    22209CD  22209CDK bearing     NSK
