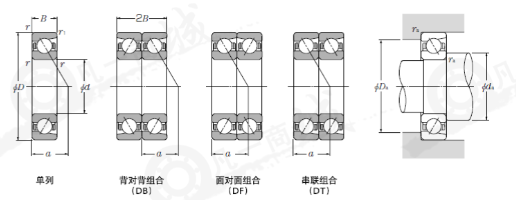

Boundary Dimensions
d 10 mm Bore diameter
D 35 mm Outside diameter
B 11 mm Width
r (min.) 0.6 mm Chamfer dimension
r1 (min.) 0.3 mm Chamfer dimension
Basic Load Ratings
Cr 9600 N Basic dynamic load rating
C0r 4050 N Basic static load rating
Speeds
Grease 14000 min-1 Grease lubrication
Oil (Oil-bath) 20000 min-1 Oil-bath lubrication
Dimensions
a 14.9 mm Effective load center
Abutment and Fillet Dimensions
da (min.) 15 mm Diameter of shaft abutment
Da (max.) 30 mm Diameter of housing abutment
ra (max.) 0.6 mm Radius of shaft or housing fillet
Mass
(approx.) 0.054 kg

---
