Timken HM81649 - HM81610 bearing

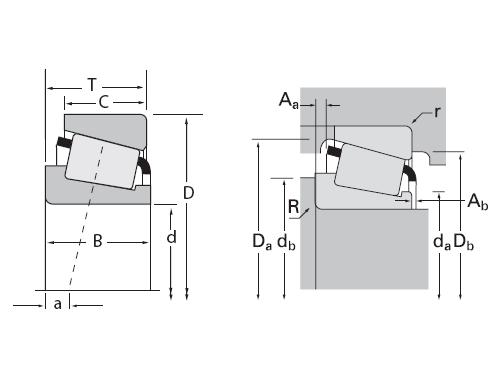

Series: HM81600                Cone Part Number: HM81649                Cup Part Number: HM81610                Design Units: Imperial                Z - Number of Rollers Per Row: 12                C1 - Dynamic Radial Rating (1 million revolutions)2: 9020 lbf      40100 N                C90 - Dynamic Radial Rating (90 million revolutions)1: 2340 lbf      10400 N                e - ISO Factor2: 0.55                C - Cup Width: 0.6299 in      15.999 mm                G2 - Heat Generation Factor (Rib-Roller End): 4.57                Da - Cup Frontface Backing Diameter: 1.71 in      43.43 mm                da - Cone Frontface Backing Diameter: 0.90 in      22.86 mm                Cage Type: Stamped Steel                K - Factor1: 1.07                Y - ISO Factor3: 1.1                Ab - Cage-Cone Frontface Clearance: 0.05 in      1.27 mm                R - Cone Backface "To Clear" Radius1: 0.040 in      1.020 mm                db - Cone Backface Backing Diameter: 1.08 in      27.43 mm                Db - Cup Backface Backing Diameter: 1.48 in      37.59 mm                d - Cone Bore: 0.6294 in      15.987 mm                Ca90 - Dynamic Thrust Rating (90 million revolutions)3: 2190 lbf      9720 N                C0 - Static Radial Rating: 8840 lbf      39300 N                r - Cup Backface "To Clear" Radius2: 0.080 in      2.03 mm                B - Cone Width: 0.8268 in      21.001 mm                Aa - Cage-Cone Backface Clearance: 0.06 in      1.52 mm                Bearing Weight: 0.4000 lb      0.2000 Kg                T - Bearing Width: 0.8268 in      21.001 mm                D - Cup Outer Diameter: 1.8494 in      46.975 mm                a - Effective Center Location3: -0.24 in      -6.10 mm                G1 - Heat Generation Factor (Roller-Raceway): 6.1                Type:

---

We provid brand: NSK INA IKO KOYO ZWZ LYC C&U HRB TMB TWB

              if you are interested in HM81649 - HM81610 and some details of its properties, Please contact Email for any inquiries,We are professionally provides you the HM81649 - HM81610 products , HM81649 - HM81610 is widely used in the metallurgy, railway, papermaking, cement, engineering machinery, power, transmission equipment, machine toos, automotive, aerospace industry.distributor,in stock, dimensions | price |specifications| SPEC| sale| size| Weight| draw | Manufacturer ,supplier,China /Chinese

---
