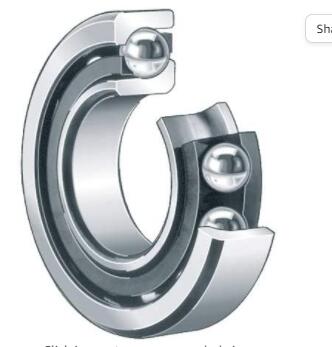

        (Schaeffler) FAG 7220-B-TVP bearing Angular Contact Bearing






Product Description
Specifications:

Row Type &a; Fill Slot:-Single-Row Non-Fill Slot
Internal Clearance:-C0
Closure Type:-Open
Radial Dynamic Load Capacity:-142000 N
Radial Static Load Capacity:-124000 N
Operating Temperature Range:-Maximum of +120 °C
Cage Material:-Polyamide
Outer Ring Width:-34 mm
Maximum RPM:-4400 RPM
Finish/Coating:-Uncoated
Precision Rating:-Not Rated
Fillet Radius:-2.1 mm
Series:-7200
Standards Met:-DIN 628-1
Weight:-7.99 lbs
Technical Details
Manufacturer ‎FAG (Schaeffler)
Part Number ‎7220-B-XL-TVP
Material ‎Polyamide
Measurement System ‎Metric

 100 mm Bore, 180 mm OD, 34 mm Width, Open, 40 ° Contact Angle, C0
