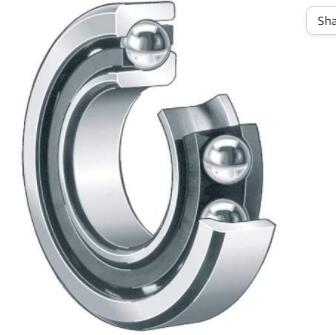

        (Schaeffler) FAG 7230-B-MP bearing Angular Contact Bearing



Product details
Brand FAG (Schaeffler)
Material Material
Row Type &a; Fill Slot:-Single-Row Non-Fill Slot
Internal Clearance:-C0
Closure Type:-Open
Radial Dynamic Load Capacity:-245000 N
Radial Static Load Capacity:-275000 N
Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

Product Description
Specifications:

Row Type &a; Fill Slot:-Single-Row Non-Fill Slot
Internal Clearance:-C0
Closure Type:-Open
Radial Dynamic Load Capacity:-245000 N
Radial Static Load Capacity:-275000 N
Operating Temperature Range:-Maximum of +200 °C
Cage Material:-Brass
Outer Ring Width:-45 mm
Maximum RPM:-3750 RPM
Finish/Coating:-Uncoated
Precision Rating:-Not Rated
Fillet Radius:-2.5 mm
Series:-7200
Standards Met:-DIN 628-1
Weight:-25.52 lbs

 - 150 mm Bore, 270 mm OD, 45 mm Width, Open, 40 ° Contact Angle, C0
