Dimensions
Bore diameter 380 mm
Outside diameter 540 mm
Width 200 mm

Product net weight 189 kg


Basic dynamic load rating 2 860 kN
Basic static load rating 6 800 kN
Reference speed 800 r/min
Limiting speed 1 200 r/min

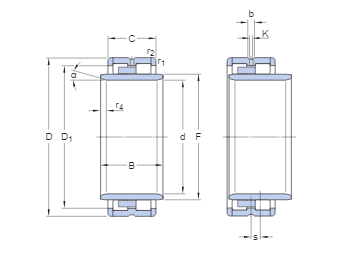

d
380 mm Bore diameter
D
540 mm Outside diameter
B
200 mm Overall bearing width
D1
≈486 mm Shoulder diameter outer ring
F
422 mm Raceway diameter inner ring
b
16.7 mm Width of annular groove
K
9 mm Diameter lubrication hole
r1,2
min.2 mm Chamfer dimension outer ring
r3,4
min.5 mm Chamfer dimension inner ring
s
max.4.9 mm Permissible axial displacement from the normal position of one bearing ring relative to the other

---
