Dimensions
Bore diameter 460 mm
Outside diameter 760 mm
Width 300 mm

Product net weight 537 kg

Basic dynamic load rating 6 440 kN
Basic static load rating 12 900 kN
Reference speed 670 r/min
Limiting speed 850 r/min

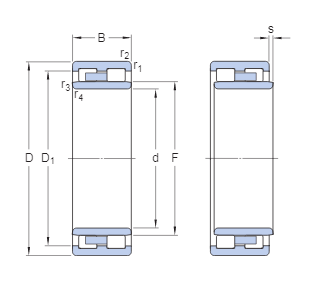

d
460 mm Bore diameter
D
760 mm Outside diameter
B
300 mm Overall bearing width
D1
≈672 mm Shoulder diameter outer ring
F
537 mm Raceway diameter inner ring
r1,2
min.7.5 mm Chamfer dimension outer ring
r3,4
min.7.5 mm Chamfer dimension inner ring
s
max.12.8 mm Permissible axial displacement from the normal position of one bearing ring relative to the other

---
